How to copy and paste an accessible PDF tag tree

Equidox software screenshot showing Transfer Zones button

Equidox introduces Zone Transfer

The time-saving function you’ve been waiting for is here! Equidox now offers a Zone Transfer add-on for its PDF remediation software. As its name suggests, this function copies the tag zones from one document to another nearly identical document. This new feature is easy to use and can be used to remediate identically formatted documents. Simply save your tag zones in one document and apply them to the next. What if your documents are not 100% identical but close? With a  few quick adjustments, Zone Transfer can work for those documents, too.

When is this useful?

Remediating an archive of identical filled PDF forms? Have monthly meeting minutes that are pretty similar?  Got a backlog of repetitive monthly financials? Copies of the same document in multiple languages? Finish all of these projects in a fraction of the time using the Zone Transfer tool.

Here’s how it works:

  1. Remediate the first of the identical (or nearly identical) documents.  Check out our recent webinar if you need help with remediation techniques.
  2. Ensure the document is correctly remediated and then go to the Output Tab in the Document Detail.

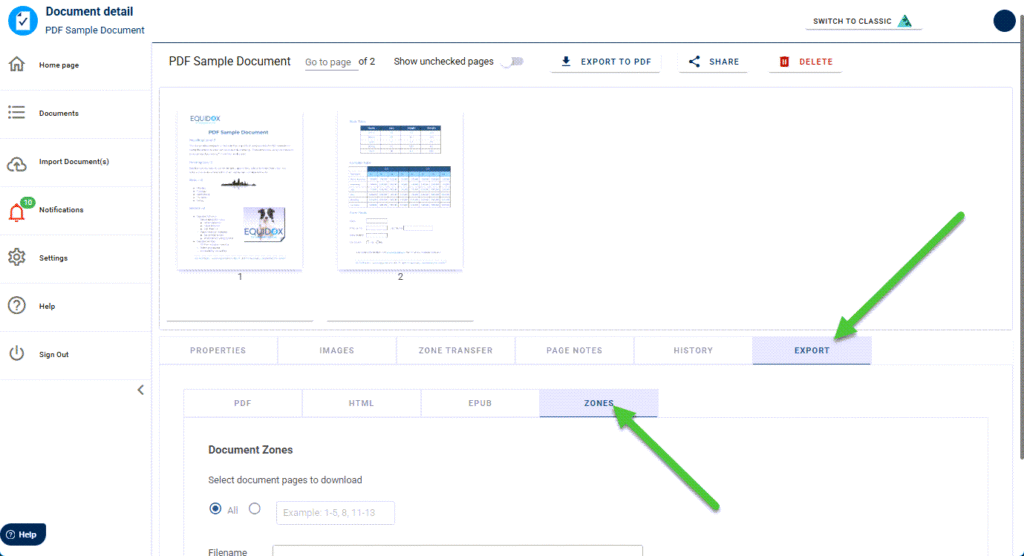

  3. Choose the Zones Tab under the Output Tab and give the file a name (document title plus “Zones” is a good option). Document Detail page with arrows pointing to the OutPut Tab and the Zones Tab.
  4. This will save the Equidox zone layout as a .zip file.
  5. Go back to the Documents Page and choose the Zone Transfer button next to the new target document onto which the saved Zone layout will be pasted.

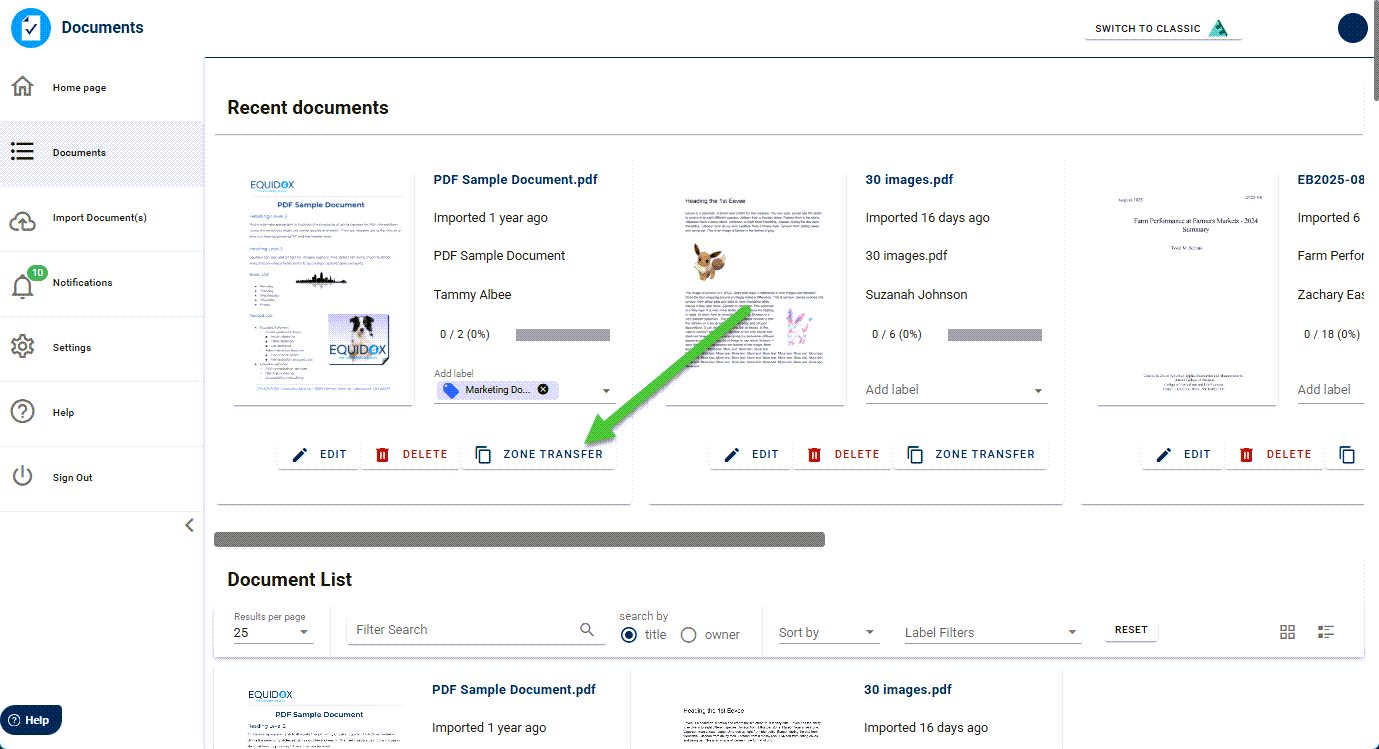

    Documents Page with arrow pointing to the Zone Transfer button alongside the chosen document.

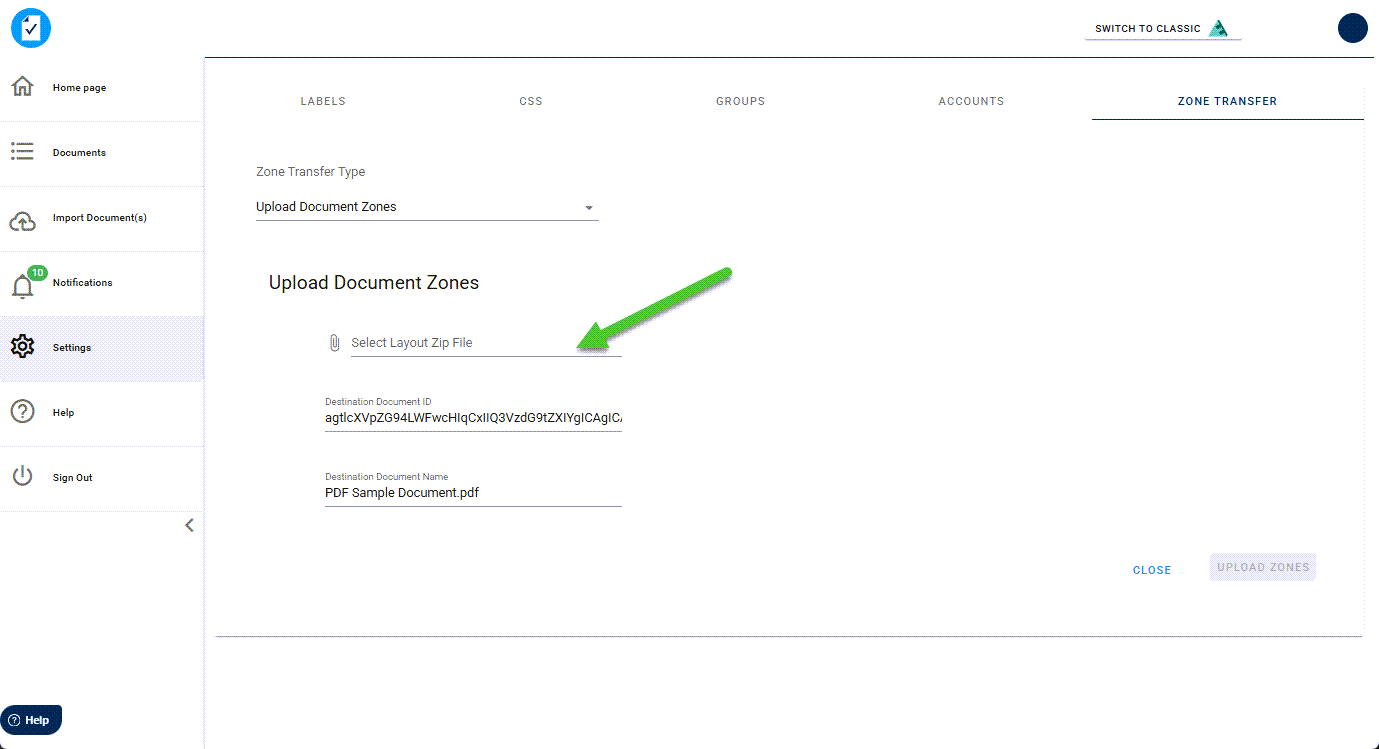

  6. This will open up a Settings page.  Choose the saved Equidox zone layout .zip file and press the Upload button to apply the saved zones to the new target document. (No need to unzip the file.)Settings page with arrow poingint to the "Choose File" button and the Upload Button
  7. Once Equidox announces that the Zone Transfer is complete, return to the Documents Tab and open the target document. Equidox will automatically apply the saved zones from the .zip file.  Quickly check each page of the new document to ensure the zone layout is completely correct.  Make any small adjustments as needed.  Do not skip this step if you wish to ensure the document’s accessibility.
  8. Once remediation is complete, the document can be output as an accessible PDF and Equidox will apply digital tags using the adjusted zone layout.
  9. Repeat steps 5-8 for as many similar documents as required.

Zone layout .zip files can be used many times. For example, with monthly reports that are identical, simply upload the new document and apply the saved Zone layout .zip file from a previous month.

Zone Transfer can drastically reduce remediation time

Why start from 0% remediated when you can start from 95% remediated?  Zone transfer will allow you to make nearly identical PDFs accessible in a fraction of the time.  With a few clicks, you can remediate multiple identical or nearly identical documents quickly and easily.  Even the need for small adjustments does not compare to the time necessary to remediate each of these similar documents from start to finish.

Interested in the Equidox Zone Transfer feature?  Contact us for more information.

Do you have too many documents for even the Zone Transfer feature? If you have thousands or even hundreds of thousands of similar documents that need to be remediated, you might be a candidate for our High Volume Solutions.
